Installing a Bluetooth Headset Without Ruining Your Motorcycle Helmet: Fit, Wires, and Speaker Placement
Installing a Bluetooth Headset Without Ruining Your Motorcycle Helmet: Fit, Wires, and Speaker Placement
The box arrived, you opened it, and now you are staring at speakers, wires, a mounting bracket, and two microphone options. The instructions show a clean diagram, but your helmet does not look like the diagram. This guide walks through the real installation — speaker pockets, wire routing, microphone position, and the mistakes that turn a simple install into a return.
Installing a Bluetooth headset on a motorcycle helmet takes about 20 to 40 minutes and does not require special tools. The four critical steps are: checking speaker pocket depth before sticking anything in place, positioning the speakers so they do not press on your ears or glasses, routing wires behind the comfort liner without pulling or pinching, and choosing the right microphone and position for your helmet type. The single most common mistake is mounting the speakers before testing the position — once the adhesive is set, repositioning is messy.
The Box Arrived — Now What?

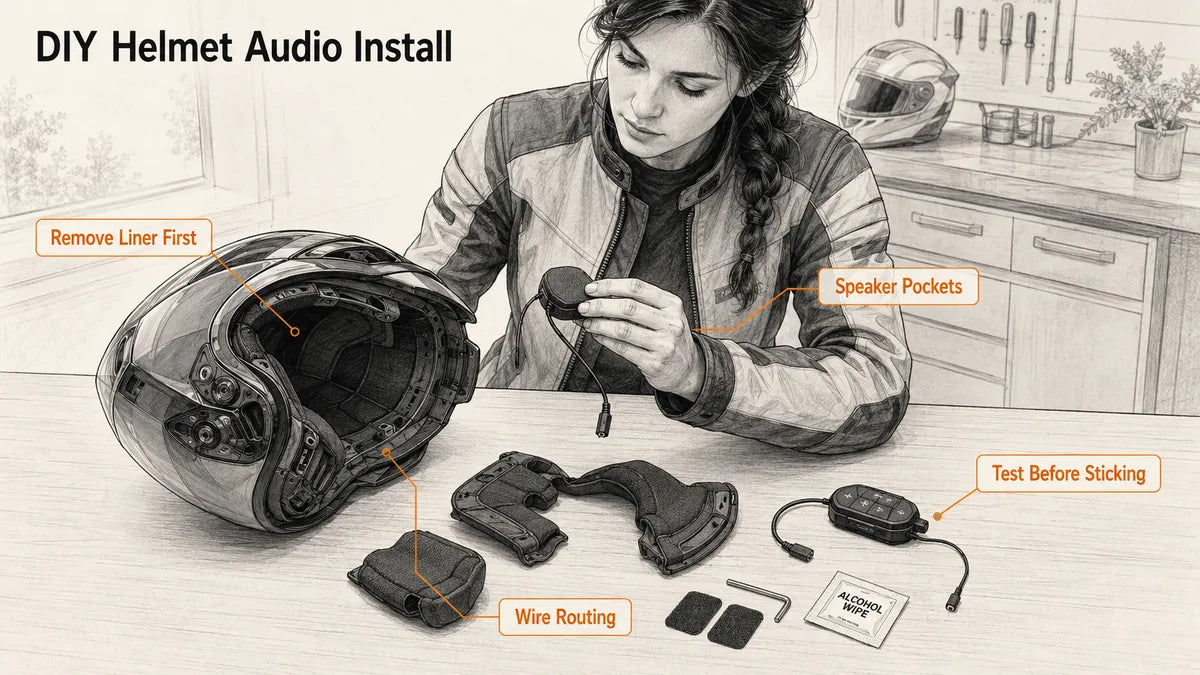

Open the box and lay everything out before touching the helmet. A typical kit contains: the main control unit, two speakers connected by a thin wire, a microphone (boom or wired, sometimes both), a clamp or adhesive mounting bracket, an Allen key or small screwdriver, Velcro pads for the speakers, and a USB charging cable. Separate the parts you will use from the parts you will not — most kits include extras for different helmet types, and organizing them now saves hunting for the right piece with the helmet half-disassembled.
Remove your helmet's cheek pads and comfort liner before doing anything else. On most helmets, the cheek pads snap out with gentle pulls at the edges, and the crown liner unclips at the forehead and rear. This takes two minutes. If you have never removed your helmet's liner before, this is the time to learn — you will need to do it for cleaning regardless of whether you install a headset. Charge the unit fully before installation. A unit that dies during pairing creates confusion about whether the install or the battery is the problem.
Rider Persona: Mike — First-Time Installer Who Almost Returned His Headset. Mike bought a mid-range Bluetooth unit for his daily commute and weekend solo rides. He watched a five-minute video and tried to install everything in 10 minutes without fully removing the liner. The speakers pressed against his ears, the wire pulled every time he turned his head, and the microphone kept falling off the chin bar. He packed it all back into the box and was ready to return it. His mistake was not the headset — it was skipping the prep. The second time, he removed the liner completely, tested speaker position before sticking anything, and routed the wires along the EPS channels. It took 35 minutes. The unit has stayed in place for six months.
Speaker Pockets: The Make-or-Break Detail
Behind every helmet's comfort liner, in the ear area of the EPS layer, there are recessed oval or circular cutouts. These are the speaker pockets. Their depth varies widely — some are 10 mm deep, others 5 mm or less. If your helmet has shallow pockets and your headset came with 10 mm thick speakers, you have three options: remove the Velcro backing pad to save 2–3 mm, position the speaker in the cheek pad fabric instead of the EPS pocket, or buy slim aftermarket speakers (5–6 mm thick) designed for shallow pockets.
Never cut or sand the EPS liner to make speakers fit. The EPS foam is a precisely engineered impact absorption layer. Removing material to create a deeper pocket compromises the helmet's ability to manage impact energy in that zone. If the speakers do not fit the existing pockets, change the speaker approach — not the EPS.
Speaker Placement That Does Not Hurt
Before you stick the speakers down with the adhesive Velcro, put the cheek pads and liner back in loosely, place the speakers in the pockets without adhesive, put the helmet on, and adjust. Move the speakers in small increments until you find the position where you feel no pressure and can hear clearly through the liner. Mark the position lightly with masking tape on the EPS — do not use a pen or marker directly on the foam.
If you wear glasses, this step is doubly important. The speaker and the glasses temple will compete for the same space above and behind your ear. Put your glasses on during the test fit. If you feel the temple pressing into your head more than usual, the speaker is too far forward or too thick for the pocket. Move it rearward a few millimeters or use the thinner mounting option.
Rider Persona: Sarah — Glasses Wearer Who Solved the Pressure Puzzle. Sarah wears glasses every ride — her vision without them is not safe for the road. When she installed her first Bluetooth headset, the speakers pressed her glasses temples into the side of her head so hard that she had red marks after 45 minutes. The fix was moving the speakers about 5 mm rearward — behind the glasses temple instead of directly underneath it — and using the thinner adhesive mount instead of the Velcro pad. She loses a small amount of volume, but the pressure is gone. For her, that trade-off was an easy choice.
Wire Routing Without Ruining the Liner
The wires connecting the two speakers and the microphone to the control unit need to travel from inside the helmet to the external bracket without pulling, pinching, or creating pressure points. Most helmets have natural channels — shallow grooves in the EPS around the crown and along the base — where the wires can sit. Route the wires through these channels before replacing the liner.
The wire path that works for most full-face helmets: left speaker wire goes up along the left temple EPS channel, across the crown channel to the right side, where it meets the right speaker wire. The microphone wire runs forward from the temple area along the chin bar EPS edge. All three converge near the ear area where the external bracket mounts, and exit the helmet at the base of the shell under the cheek pad.
When you replace the liner and cheek pads, check that the wires are not pinched at the snap points. A wire caught under a snap will pull every time you put the helmet on, and over weeks of use, the wire insulation can wear through. Use the adhesive wire clips included in most kits to secure loose sections. Do not wrap wires around EPS edges — the thin foam edge can cut into the wire insulation over time with vibration.
Microphone Position for Full Face and Modular Helmets
Full-face helmets — wired microphone: Stick the wired mic capsule to the inside of the chin bar, centered left to right, about 10–15 mm in front of where your lips would be with the visor closed. The capsule should point toward your mouth, not toward the visor. Use the included foam windscreen — it makes a noticeable difference in cutting breath noise and wind entering through the chin vent.
Modular helmets — wired or boom microphone: The moving chin bar complicates everything. A wired mic mounted inside the chin bar works in most cases, but test it with the bar both open and closed — some modular helmets have a gap that channels wind directly onto the mic. If you hear wind rumble on a test call, reposition the mic toward the cheek side or switch to a short boom mic on the left shell edge.
Open-face and half helmets — boom microphone only: Mount the boom on the left shell edge with the mic capsule directly in front of your lips, about two finger-widths away. Use the largest foam windscreen. No chin bar means no still-air pocket, so the mic needs to be as close to your mouth as comfortable.
| Helmet Type | Mic Type | Mounting Location | Key Check |
|---|---|---|---|
| Full Face | Wired capsule | Inside chin bar, centered | Mic points at mouth, not visor; foam windscreen on |
| Modular (flip-up) | Wired or short boom | Chin bar interior or shell edge | Test with bar open and closed; check for wind gap |
| Open Face / Half | Boom only | Left shell edge, mic at lip level | Two finger-widths from mouth; large windscreen |
Sticky Mount vs Clamp Mount
Most intercom kits include both a clamp mount and an adhesive mount for the external control unit. The clamp mount grips the bottom edge of the helmet shell and is more common — it is secure, removable, and does not leave residue. But it requires a flat, uniform section of shell edge, about 25–35 mm long. Some helmets with aggressive shell contours or thick rubber trim at the base do not provide a clean clamping surface.
The adhesive mount uses a strong 3M-type adhesive pad to stick a flat mounting plate to the side of the helmet shell. It works on almost any shell shape and sits flatter than a clamp. The downside: it is semi-permanent. Removing it requires heat, patience, and sometimes adhesive remover. It will not damage the shell if removed carefully, but it is not something you want to reposition multiple times. Try the clamp first. If the clamp does not sit flush, wobbles, or interferes with the visor mechanism when the visor is fully open, switch to the adhesive mount. Clean the shell surface with the alcohol wipe included in the kit before sticking.
After the Install: The Five-Minute Check
Before you put away the tools and go for a ride, run through these checks in order:
- Put the helmet on with the unit powered on. Play music at moderate volume. Turn your head fully left, right, up, and down. If you hear the wire pulling or crackling, something is routed too tight.
- Check for speaker pressure. Wear the helmet for five minutes while stationary. If you feel pressure on either ear, remove the helmet, pull back the liner, and reposition that speaker slightly.
- Test the microphone with a phone call. Call someone — or record a voice memo — with the helmet on and the visor closed. Play it back. If you sound distant, the mic is too far from your mouth. If there is heavy wind rumble, the windscreen may need repositioning.
- Check the external unit clearance. With the helmet on, reach up and operate the main buttons by feel. Make sure the unit does not interfere with your jacket collar or shoulder when you turn your head to check your blind spot.
- Open and close the visor fully. Confirm the bracket does not catch the visor at any point in its travel.
- Check chin strap clearance. The clamp or adhesive mount should not interfere with the D-rings or ratchet mechanism on that side.
Bluetooth Headset and Helmets for a Clean Install
The products below cover the headset and the helmets — start with the headset that fits your budget and riding style, then match it to a helmet that makes the installation steps in this guide straightforward.
Best for Solo Riders and First-Time Installers
The Ohmiex C1 Motorcycle Bluetooth Headset runs Bluetooth V5.3 with IP67 waterproofing. The compact low-profile body keeps the external bracket small and discreet, and the glove-friendly controls mean the speaker-fit and wire-routing work you do during install gets used every ride. If you are following the steps in this guide for the first time, this headset gives you a clean, forgiving install. 1-year warranty.
View Ohmiex C1
Best for Daily Commuters
The Mad Shark Full Face Helmet pairs well with the Ohmiex C1 for a commuter setup that installs cleanly. The removable washable liner pulls out in seconds for full access to the EPS speaker pockets, and the chin bar interior has a flat section that holds the wired microphone securely. DOT-certified ABS shell with multi-layer EPS and active ventilation.
View Mad Shark
Best for Mixed Riding
The R1-PRO Full Face Helmet provides clean, flat sections near the ear area — ideal for both clamp and adhesive bracket mounting. The ventilation channels are positioned away from the speaker pocket zone, so wire routing does not cross airflow paths. DOT FMVSS 218 and ECE 22.06 certified, with a magnetic visor release that means no visor mechanism hardware near the bracket area.
View R1-PROCommon Questions About Helmet Bluetooth Installation
Will installing a Bluetooth headset void my helmet warranty?
No. Installing a clamp-on or adhesive-mounted intercom bracket on the external shell and placing speakers inside the comfort liner does not modify the helmet structure and does not void the warranty. The line you must not cross is modifying the EPS liner — cutting, drilling, or sanding the EPS foam to fit speakers will void the warranty and compromise the helmet's impact protection.
Can I cut into the EPS liner to fit speakers?
No. The EPS liner is a precisely engineered crush zone. Every millimeter of thickness contributes to impact energy management. Removing material to create a deeper speaker pocket reduces the helmet's ability to absorb energy in the temple area — one of the most vulnerable impact zones. If your helmet's speaker pockets are too shallow, buy slim-profile aftermarket speakers or position the speakers in the cheek pad fabric instead.
What if my helmet does not have speaker pockets?
Some helmets — especially older models and budget open-face helmets — have flat EPS with no recessed speaker cutouts. In this case, position the speakers inside the cheek pad fabric layers, as close to your ear as possible without the speaker pressing directly against the EPS. You can also buy ultra-slim speakers (5–6 mm thick) that sit more comfortably behind the liner without a pocket. Avoid stacking foam spacers to create a pocket — the added bulk will push the cheek pad away from your face and reduce fit stability.
Where should I place the microphone in a full-face helmet?
Stick the wired microphone capsule to the inside of the chin bar, centered left to right, about 10–15 mm in front of where your lips would be with the helmet on. The mic should point toward your mouth, not toward the visor. Use the foam windscreen — it significantly reduces breath noise and wind buffeting entering through the chin vent. Avoid placing the mic on the cheek pad or the side of the EPS; it needs to be directly in front of your mouth to pick up clear speech over wind noise.
How do I route wires so they do not pull on my ears?
Route all wires behind the comfort liner, through the natural EPS channels around the crown and temple areas. Leave a small service loop — about a finger's width of extra wire — near the speaker so that when you put the helmet on and the liner compresses slightly, the wire has slack to move with it. Never route a wire directly under a liner snap; route it around the snap point. If a wire pulls when you turn your head, it is too short. Pull it back and give it more slack before reseating the liner.
Clamp mount vs sticky mount — which is safer?
Both are safe when installed correctly. A clamp mount is removable and repositionable, but it must grip a flat, uniform section of the shell edge — if the clamp wobbles or only partially contacts the shell, it can come loose. A 3M adhesive mount is more secure on irregular shell shapes and sits flatter, but it is semi-permanent. Try the clamp first. If the helmet shell edge is too thick, curved, or rubber-trimmed for a clean clamp grip, the adhesive mount is the better choice.
Can I install a Bluetooth headset on a modular helmet?
Yes, modular helmets are often the easiest to install because the flip-up chin bar gives full access to the interior. The main decision is microphone type: a wired mic mounted inside the chin bar works well in most cases, but test it with the chin bar both open and closed — wind can enter through the gap between the chin bar and the shell. If the wired mic picks up too much wind noise, switch to a short boom mic mounted on the left shell edge.
Will the speakers press on my glasses if I wear them with the helmet?
They can, and this is one of the most common post-install complaints. The fix is speaker position: move the speakers slightly rearward so they sit behind the glasses temple rather than directly under it. You may lose a small amount of perceived volume, but the pressure relief is usually worth it. If your helmet has deep speaker pockets, the problem is less likely — the speaker sits recessed enough that it does not push the temple into your head. If your helmet has shallow pockets, consider slim aftermarket speakers.
Final Notes
A Bluetooth headset installation is not complicated, but it rewards patience and punishes shortcuts. The three mistakes that cause the most returns — speaker pressure, wire pulling, and bad microphone position — are all avoidable with a 10-minute test fit before committing to adhesive. Remove the liner completely, test speaker placement with the helmet on, route wires with slack, and make a test call before you ride.
If something feels wrong after the first ride — a pressure point, a wire tug, muffled audio — do not ignore it and hope it goes away. Pull the liner back, adjust the position, and test again. A headset that annoys you every ride will end up in a drawer. One that fits invisibly will change how you ride.
